Handheld Scanner


Handheld scanner is an electronic device that can read and output printed barcodes to a computer. Additionally, barcode scanner contain decoder circuitry analyzing the barcode's image data and sending the barcode's content to scanner's output part. Data collection products with outstanding performance and unyielding reliability: Tethered or cordless, Laser linear or area imaging technology, With standard, Rugged or antimicrobial enclosure, Patented green spot good read indication.

Types & Features

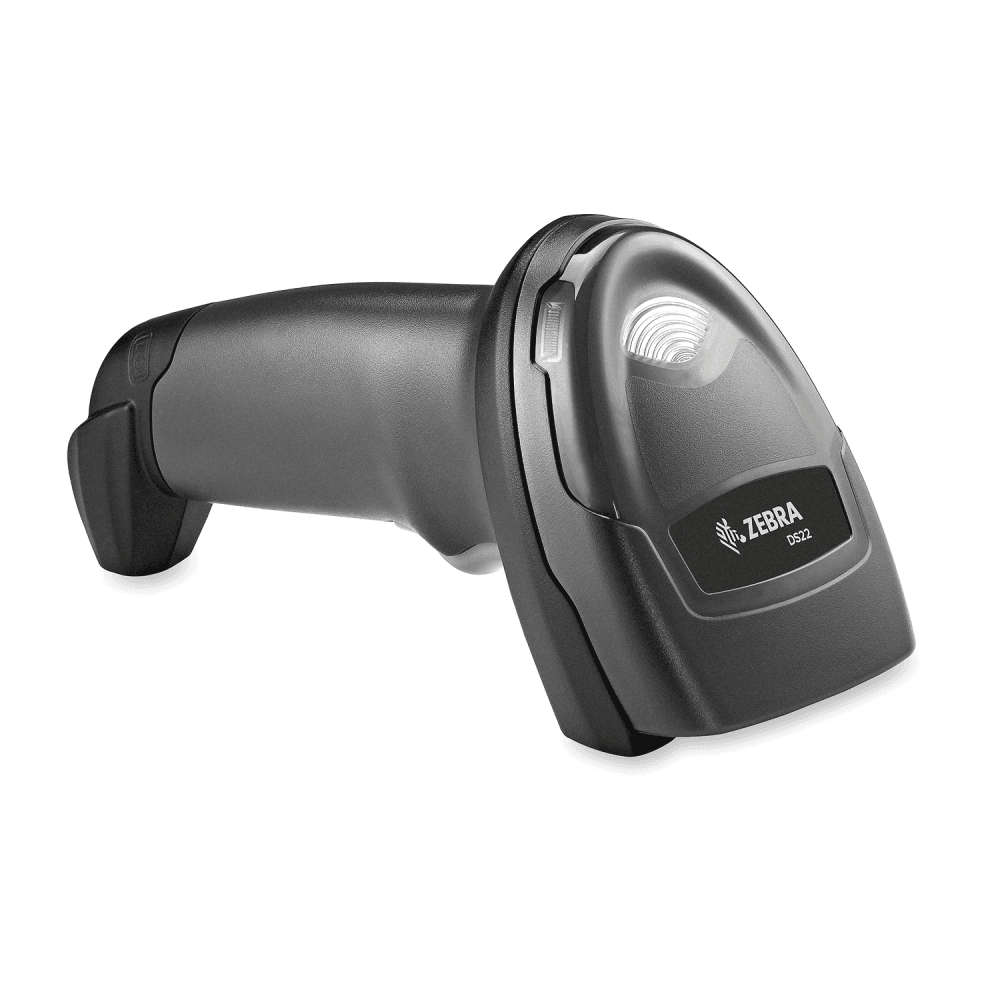

Zebra DS2208

•Light Source Aiming Pattern : Linear 624nm Amber LED

•Depth of Field : EAN/UPCA: 13 mils: 0.5 to 35.0 cm / 0.2 to 13.8 in

•Scan Angle : Pitch: +/- 65°; Roll (Tilt): +/- 360°; Skew (Yaw): +/- 60°

•Dimension : 6.5 in. H x 2.6 in. W x 3.9 in. D / 16.5 cm H x 6.6 cm W x 9.9 cm D

•Weight : 5.7 oz. / 161.6 g

•Interface : USB, RS232, Keyboard Wedge, TGCS (IBM) 46XX over RS485

•Barcode : 1D, 2D, PDF417

•Input Voltage : 4.5 to 5.5 VDC Host Powered; 4.5 to 5.5 VDC External Power Supply

Shinodoo SD2801

•Light Source : Aiming 617nm LED

•Depth of Field : 40-200mm@UPC/EAN 13 mil PCS = 90%

•Scan Angle : Elevation angle 65' , Tilt 30' , Declination 55'

•Dimension : 173mm x 67mm x 94mm

•Weight : 220g

•Interface : USB, RS32

•Barcode : 1D & 2D

•Input Voltage : 5VDC +/- 10%



Excellent Optical Design Make The Product More Outstanding

☺ Long Depth & Wide Angle


○ Long scan depth make scanning easier and more efficient 360° 65° 60° scanning angle. Scan code is more casual.

☺ Minimum Contrast 20%


○ This make barcodes with low contrast and color codes easier to read.

☺ The Lights


○ High brightness illumination 620nm red aiming light.


1D 2D Barcode All In One Scanner

♦ Screen & Paper Code


♣ Support QR code displayed by various screens such as mobile phones, pads, computers,etc.

♦ Fast Switch


♣ Automatic fast switching between 1D and 2D code, no need to set, no waiting.

♦ Cost & Efficiency


♣ Two codes, one type of scanner, save cost and improves efficiency.
